Because both ESP and Non ESP control map is inputted in one type of ECM and selecting option is possible, one type is applied to both ESP and Non ESP option

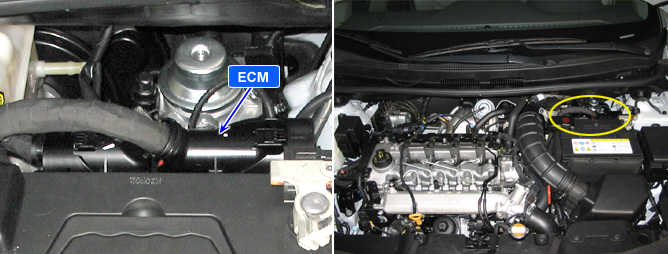

When ECM is installed to vehicle, ESP and Non ESP recognition is performed by ECM automatically as checking whether ground line(ECM connector C244-K terminal 19) is grounded or opened.(ESP and Non ESP recognition is performed every IG KEY ON process.)
If ESP, Non ESP recognition is not fulfilled well or any error occurs during the process, engine power generation is not sufficient.
ESP : ECM connector CUD-K terminal 19 is grounded
Non ESP : ECM connector CUD-K terminal 19 is opened(no wiring exists)
P1815 is set when recognized ESP data based on ECM CUD-K terminal 19 state(grounded or opened) is not readable or writable at EEPROM. This code is due to ECM failure.
Item
Detecting Condition
Possible Cause
DTC Strategy
Voltage monitoring
ESP/FTCS Auto
recognition terminal circuit
ECM component failure
Enable Conditions
IG KEY "ON"
Threshold Value
ESP learning error
Diagnostic Time
0.6 sec
Fail Safe
Fuel Cut
NO
EGR Off
Fuel Limit
Check Lamp
