B1515 Buckle Switch Driver Defect
AutoHex Online Help: Hyundai CENTENNIAL(LZ) 2008
INSPECTION PROCEDURES FOR DIAGNOSTIC TROUBLE CODES
DTC | B1515 Driver seat belt switch defect B1516 Passenger seat belt switch defect |
DESCRIPTION
This system decides whether the seat belt of the driver or passenger are locked and then prevent the belt pretensioner from deploying on crash. |
DTC DETECTING CONDITIONCondition | Prabable cause |
Seat belt switch malfunction SRSCM malfunction
| Seat belt switch Wire harness SRSCM
|

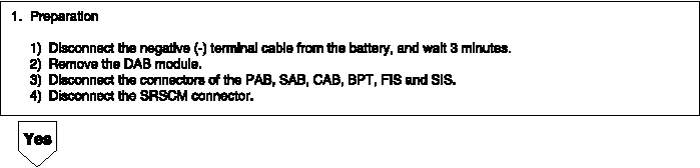

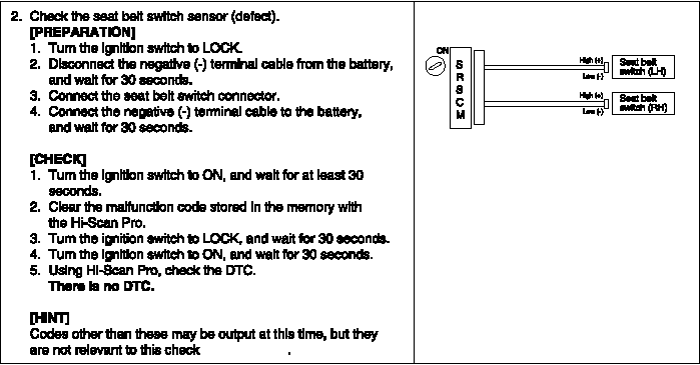

INSPECTION PROCEDURES
