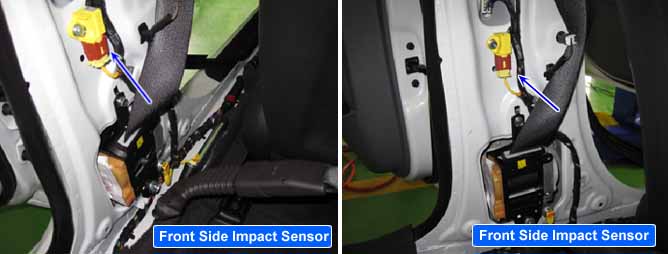

Pressure-Side Impact Sensor and Side Impact Sensor are installed in the left and the right side of front door and in the lower of B-pillar respectively.
The Pressure-Side Impact Sensor senses an impact based on an acceleration at crashing.
Unlike the conventional acceleration sensor, the Pressure Sensor senses an air pressure by a distorted door at crashing and measures an impact.
The SCM detects the impact signals of the Pressure-Side Impact Sensor and Side Impact Sensor and compares with signals of the safe sensor inside. If the signals of all sensors are judged as a collision, the side-airbag and the curtain-airbag would be unfolded.
At inspecting the pressure sensor, keep the door airtight for an exact measuring.
The SRSCM sets DTC B140900 if there is any error in communication between DSIS and SRSCM.
Item
Detecting Condition
Possible cause
DTC Strategy
Check Data
Short to power in harness.
Short to ground in harness.
Poor connection of connected part(open).
Faulty DSIS.
Faulty SRSCM.
Enable Conditions
Ignition "ON"
Threshold Value
DSIS no acceleration data
DSIS High or Low of wire ignition short
DSIS High or Low of wire Open
Diagnostic Time
Qualification
More than 1 sec
De-Qualification
More than 2 sec
