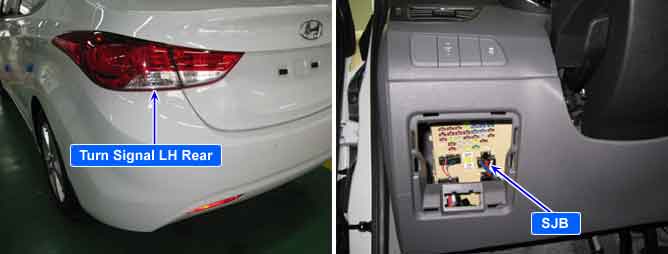

Once SJB receives left turn switch working signal, SJB makes left turn signal lamp flickering.
This code is set when Rear left turn signal lamp circuit is open for more than 150ms during left turn signal lamp operating.
Item
Detecting Condition
Possible Cause
DTC Strategy
Load Mornitoring
Poor connection
Open in Rear left turn signal lamp circuit
Faulty Rear left turn signal lamp
Faulty SJB
Enable Conditions
IG KEY ON.
Threshold Value
It is normal if output voltage is 12V.
Diagnostic Time
Immediately
DTC Erasing Time
DTC is erased immediately after trouble fixed.
