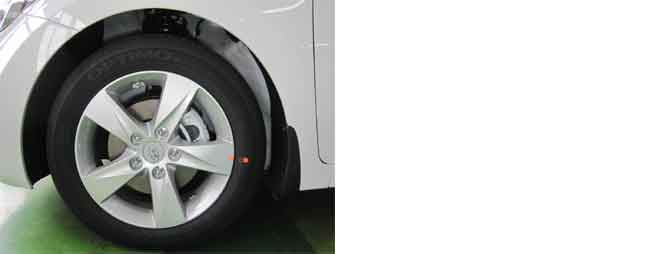

Component Location
General Description
The TPMS system is the shorten word of Tire Pressure Monitoring System. This system monitors the pressure of the tire and when it drops below a certain pressure, the TPMS ECU makes the warning lamp turn on for notifying the driver. This system consists of TPMS ECU(or TPMS Receiver) and TPMS sensors. Among components of TPMS system, the TPMS sensor is installed at each wheel rim. and its role is to measure the air pressure and the temperature of the tire and then it transmits its signals to TPMS ECU. The communication from TPMS sensors is done via RF(Radio Frequency) at a frequency.
DTC Description
The TPMS ECU monitors the voltage of sensor's battery and if it is below 2.2 V, this DTC is set.
DTC Detecting Condition
Item | Detecting Condition | Possible Cause |
DTC Strategy | Monitoring the battery of TPMS sensor
| Battery discharge of Sensor2 |
Enable Conditions | The lowest sensor's temperature which is recently measured > -4?(–20?)
he distance travelled during 12 minutes > 2.4 Mile (4 km)
|
Threshold value | The sensor's battery voltage < 2.2 V
|
