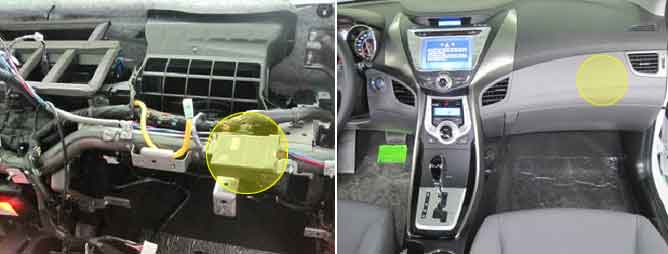

Componet Location
General Description
The TPMS system is the shorten word of Tire Pressure Monitoring System. This system monitors the pressure of the tire and when it drops below a certain pressure, the TPMS ECU makes the warning lamp turn on for notifying the driver. This system consists of TPMS ECU(or TPMS Receiver) and TPMS sensors. The TPMS ECU gets signals such as Tire pressure, Tire temperature, Battery status and Sensor ID via RF(Radio Frequency) at a frequency.
DTC Description
If it is detected as an error in the TPMS ECU, this DTC is set.
DTC Detecting Condition
Item | Detecting Condition | Possible Cause |
DTC Strategy | Monitoring the TPMS ECU itself
| Faulty TPMS ECU |
Enable Conditions | IG KEY ON
|
Threshold value | It is detected as an error in the TPMS ECU
|
