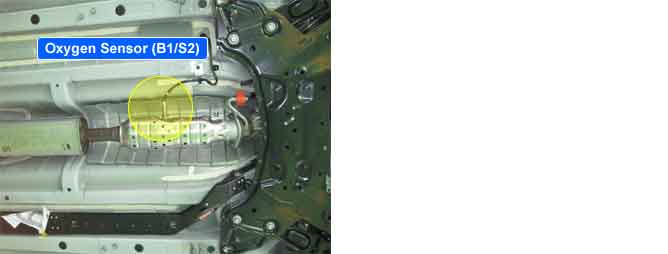

The rear heated oxygen sensor is mounted on the rear side of the Catalytic Converter (warm-up catalytic converter) or in the rear exhaust pipe, which is able to detect catalyst efficiency. The rear heated oxygen sensor (HO2S) produces a voltage between 0V and 1V. This rear heated oxygen sensor is used to estimate the oxygen storage capability. If a catalyst has good conversion properties, the oxygen fluctuations are smoothed by the oxygen storage capacity of the catalyst. If the conversion provided by the catalyst is low due to aging, poisoning or misfiring, then the oxygen fluctuations are similar to signals from the front oxygen sensor.
PCM sets DTC P0136 if the PCM detects that the rear HO2S signal circuit is open.
Item
Detecting Condition
Possible Cause
DTC Strategy
Voltage range check
Open in signal harness
Open in ground harness
Poor connection or damaged harness
Faulty Heated O2 Sensor (HO2S)
Enable Conditions
O2 Sensor operative readiness
O2 Sensor preheating and full heating phases finished
No relevant failure
10V < Battery voltage < 16V
Threshold Value
0.37 < Downstream O2 Sensor voltage < 0.49V & sensor element resistance > 60k?
Diagnostic Time
30 sec.
Mil On Condition
2 Drive Cycles
? Sector A : Signal Normal
? Sector B : Signal Fluctuation
? Sector C : Signal Recovery
