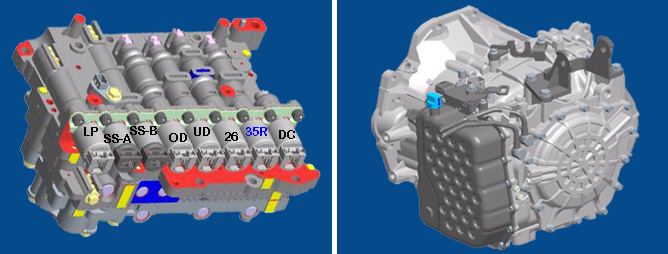

PCM control 35R/C-VFS solenoid valve by changed current for reducing 35R clutch shock.
This code is set when circuit open or short detected by PCM.
Item
Detecting Condition
Possible Cause
DTC Strategy
Monitoring voltage range(Circuit open/short check)
Circuit open or short
35R/C-VFS solenoid
PCM
Enable Conditions
Completely opened or closed
Gaer tightening
After change of speed > 0.3sec
10V < Solenoid supplied power < 16V
Threshold value
50mA = Feedback current(Circuit short) = 550mA at operating
50mA > Feedback current (Circuit open ) at operating
Detecting Time
More than 0.2sec
Fail safe
Locked into 4th gear
Solenoid
SS-A
SS-B
OD
N-H
35R
UD
26
N-L
N,P
?
1st
2nd
3rd
4th
5th
6th
L
REV
? : Connected status
? : Connedted at Vehicle speed above 8km/h
Clutch
Brake
OD C
26 B
UD B
LR B
O.W.
P,N
R
D1
D2
D3
D4
D5
D6
? : Operated at Vehicle speed under 5km/h
Working temperature : -40?~150?
Internal resistance : 5.1 ± 0.3 O( 25? normal temperature )
Fig 1) Wave form of 35R/C-VFS
