B1603 CAN Communication Bus Off

AutoHex Online Help: Hyundai VELOSTER(FS) 2012

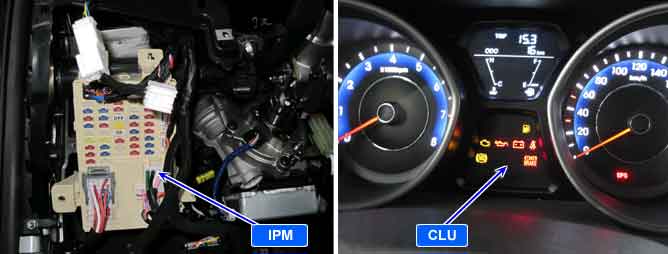

Component Location
General Description

This is DTC which is related with communication error between CLU and other units.

? Body CAN communication Control Units : IPM(Inter Panel Module), CLU(Cluster), SMK(Smart Key), HU(Head Unit).

*¹ CAN (Controller Area Network) : CAN is serial bus communication type which links not only communication system but also control units each other.

*² LIN (Local Interconnect Network) : LIN is serial communication type which is used in electrical control system. (This is less expensive.)



DTC Description

This is DTC which is related with communication error between IPM and other units.

(? Control Units : IPM(Inter Panel Module), CLU(Cluster), SMK(Smart Key), HU(Head Unit).

Case1: After short between CAN Low Line and High Line, short to ground together.

Case2: After short between CAN Low Line and High Line, short to power together.

? This code is occurred when It is not possible to transmit data by CAN Line in those way of Software and Hardware. But, It is possible to receive data by CAN Line.

This code reports BUS OFF status when data transmit error count number is over 255. The purpose is to verify the status of CAN controller and CAN communication line when error is detected.

According to operation condition, some of module which are connected to CAN line may not detect B1603.

Also, B1602 coincides with B1603 at all times.

caution

Difference between CAN ERROR and CAN BUS ERROR

CAN Error : MIL On, CAN Bus Error : No MIL

DTC Detecting Condition

Item

Detecting Condition

Possible Cause

DTC Strategy

CAN Communication Check

IPM, CLU are not Sleep condition

CAN High and Low Line short to ground coincident

CAN High and Low Line short to battery coincident

Enable Conditions

IPM, CLU power on

Threshold Value

CAN High/Low : 0V or B+

Diagnostic Time

Immediately

DTC Erasing Time

DTC is erased immediately after trouble fixed

Diagnostic Circuit Diagram
Signal Waveform & Data

Fig.1) CAN Low/High Signal Waveform

Fig.2) CAN BUS Volatage Level (Low Speed CAN)
