C1314 Sensor 3 Radio Frequency Channel Failure
AutoHex Online Help: Hyundai VELOSTER(FS) 2012

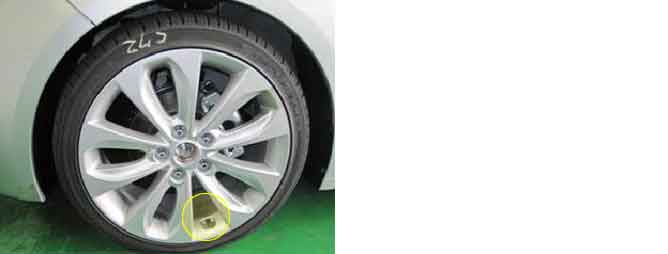

Component Location
General Description
The TPMS (tire pressure monitoring system) monitors tire pressure. A warning lamp is illuminated when any tire drops below a certain pressure. The TPMS consists of a TPMS module and the TPMS wheel sensors. The TPMS wheel sensors are installed in the wheel at the valve stem. Wheel sensors measure the air pressure and temperature of the tire, and transmits this information to the module by RF signal.
DTC Description
The TPMS ECU monitors the RF signal of the sensor and if it is not received, this DTC is set.
DTC Detecting Condition
Item | Detecting Condition | Possible cause |
DTC strategy | Monitoring RF signals
| Incorrectly installed initiator or TPMS sensor Faulty Sensor 3 Faulty TPMS Receiver |
Enable conditions | Vehicle speed > 20Km/h
|
Threshold value | After driving, there aren't any signals from the sensor for more than 540 seconds.
|
