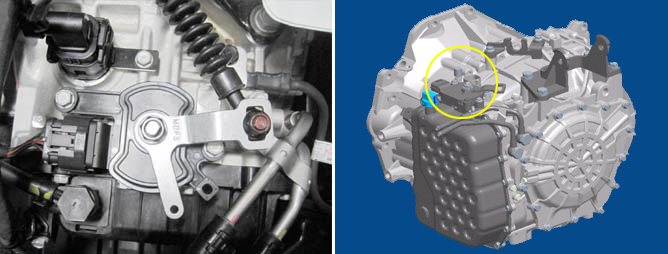

Shift lever positions P-range(Parking), R-range(Reverse), N-range(Neutral) and D-range(Driving) are changed by driver need and lever position is sent to PCM to control a gear ration.
This code is set when undefined code is input to PCM without specific of transmission pattern table. (See below)
Item
Detecting Condition
Possible Cause
DTC Strategy
Circuit Malfunction
Circuit short or open
Shift range signal error
PCM
Enable Conditions
Ignition "ON"
Battery voltage > 10V
Threshold value
TR switch unused code
Detecting Time
More than 4sec
Fail safe
Normal status : All position possible
Abnormal status : Above 3rd position possible
(3rd ~ 6th possible, 1st/2nd impossible)
P
P-R
R
R-N
N
N-D
D
S1
1
0
S2
S3
S4
