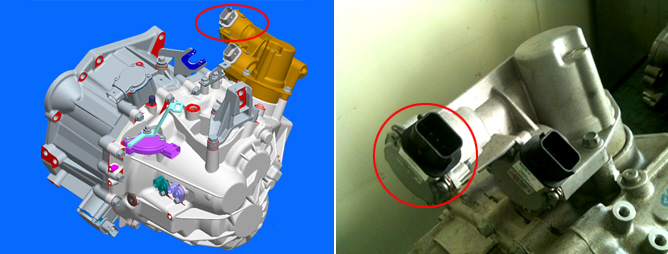

DCT system is installed 2 Clutchs. The Clutch1 is in charge of 1st, 3rd, 5th gear shift, and The clutch2 is in charge of 2nd, 4th, 6th, Reverse gear shift. The Shift Motor select suitable gear according to Driving condition.
TCM set this code When output voltage is out of available range or receive error information from driver I.C.
Item
Detecting Condition
Possible cause
DTC Strategy
Check the voltage
Shift Motor
Signal circuit open/short
Enable Conditions
Power supply to Motor > 9V
Threshold Value
Receive error information from driver I.C
Feed-back current < 1A
Diagnostic Time
1 time
Fail Safe
Gear is fixed
Weight : 3 kg
Operation Speed : Shift (150 ms), select (250 ms)
Shift Force : 1200N
Current (Power Consumption)
Shift Motor (Shift Motor) : 60A (Pick), 8A (Continuous)
Select Motor (Select Motor) : 30A (Pick), 5A (Continuous)
Use temperature : - 40? ~ 105?
Active Interlock
