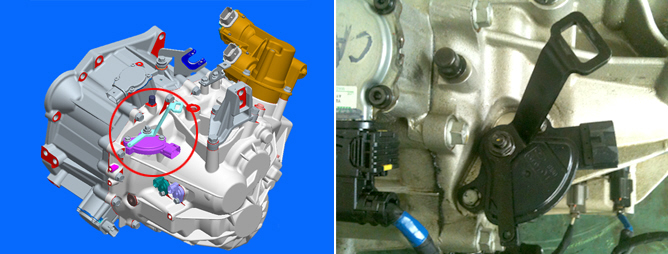

The Transaxle Range Switch sends the shift lever position information to the TCM using a 12V (battery voltage) signal. When the shift lever is in the D (Drive) position the output signal of Tansaxle Range Switch is 12V and in all other positions the voltage is 0V. The TCM judges the shift lever position by reading all signals, for the Transaxle Range Switch, simultaneously.
The TCM sets this code when the Transaxle Range Switch has no output signal for more than 2 seconds.
Item
Detecting Condition
Possible cause
DTC Strategy
Check for No signal
Open or short in circuit
Faulty Shift cable adjustment
Faulty Inhibitor switch and Manual control lever position adjustment
Faulty INHIBITOR SWITCH
Faulty TCM
Enable Conditions
Battery voltage > 10V
Threshold Value
No signal detected
Diagnostic Time
More than 2sec
Fail Safe
Normal Driving
