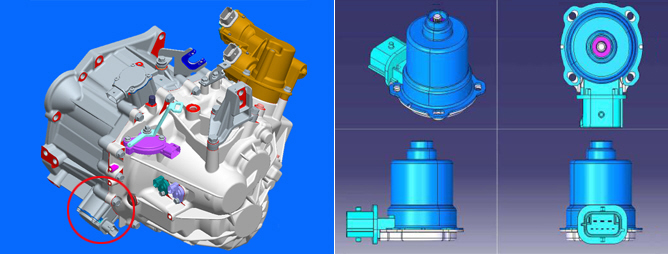

Component Location
General Description
DCT system is installed 2 Clutchs. The Clutch1 is in charge of 1st, 3rd, 5th gear shift, and The clutch2 is in charge of 2nd, 4th, 6th, Reverse gear shift. The clutch1 is controlled by clutch1 motor and clutch2 is controlled by clutch2 motor.
DTC Description
TCM set this code When output voltage is out of available range or receive error information from driver I.C.
DTC Detecting Condition
Item | Detecting Condition | Possible cause |
DTC Strategy | Check the voltage and error information.
| Clutch 2 motor
Signal circuit open/short
Faulty in TCM
|
Enable Conditions | IG ON
|
Threshold Value | Out of available range
|
Diagnostic Time | More than 2.4 seconds for 3 times
|
Fail Safe | Drive at Odd gear
|
Clutch Actuator
Composition :Lever, Roller, Base Plate, Motor, Spring
Weight : Clutch 1 (2.3 kg), Clutch 2 (2,3 kg)
Operation Speed : 100 ms (Initialization : Touch Point) / 150ms (Max. Torque)
Current : 60A (Pick), 15A(Continuous)
Operation force : 2500 N
Use temperature : -40? ~ 105?
Diagnostic Circuit Diagram
