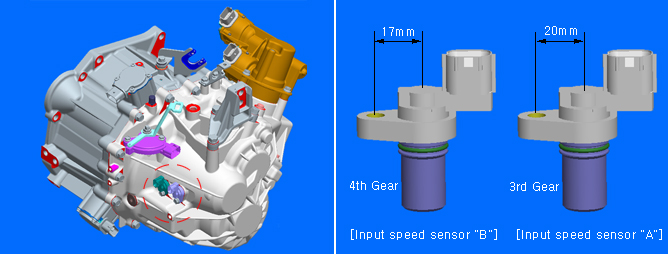

Component Location
General Description
DCT system is installed 2 Input Shaft and 2 "INPUT SPEED SENSOR". "INPUT SPEED SENSOR 1" detects of Input Shaft1 speed When shifting 1st,3rd,5th gear and "INPUT SPEED SENSOR2" detects of Input Shaft2 speed When shifting 2nd,4th,6th and "R" gear.
DTC Description
TCM set this code when output voltage is out of available range.
DTC Detecting Condition
Item | Detecting Condition | Possible cause |
DTC Strategy | Check the voltage
| Open in signal circuit
Open in Power circuit
Faulty in TCM
|
Enable Conditions | IG ON
|
Threshold Value | Input voltage < 2V
|
Diagnostic Time | More than 1 second
|
Fail Safe | Drive at Odd gear
|
