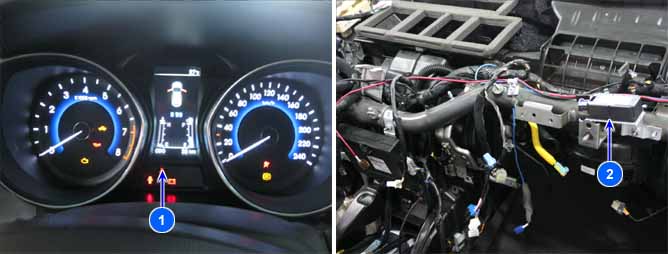

1.CLU
2.TPMS
Cluster memorizes what kinds of control unit are installed on through the CAN-BUS. Vehicle Optional information is memorized in cluster by EOL Coding procedure in the End of Line. DTC will be set if the optional information is different when comparied between memorized optional information from CAN-BUS and optional information sent by EOL. In the assembly line, EOL communication will be finished in case that DTC is not set during DTC searching.
In service field, it is necessary to set cluster by using variant coding procedure with GDS in order to syncronize the opitional parts on the vehicle after replacing cluster.
This DTC is set when variant coding is incorrectly performed as if TPMS option is not installed on the vehicle even though real vehicle has TPMS on the CAN BUS.
Item
Detecting Condition
Possible Cause
DTC Strategy
Check CAN Communication
Check vehicle optional information and performance
Perform cluster coding performance
Check ESC, TPMS, MDPS, SCC CAN line or Module
Check Cluster
Enable Conditions
Failed cluster coding
Threshold Value
The TPMS EOL coding error
The TPMS is on the CAN bus but no EOL information
Diagnostic Time
Cluster coding is incorrectly performed
DTC Erasing Time
In case of correctly performed coding procedure or erased DTC after solved problem
Fig.1) C_CAN Low/High Signal Waveform
Fig.2) C_CAN BUS Voltage Level (High Speed CAN)
