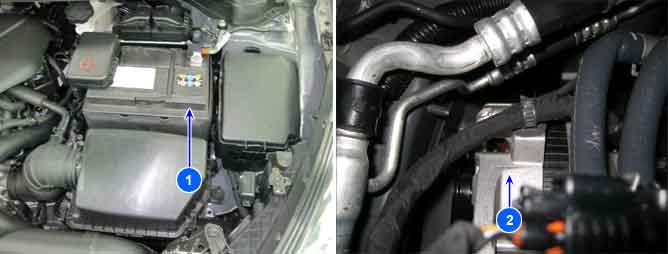

1. Battery
2. Generator
AFLS(Adaptive Front-Lighting System) provides driver with the best visibility by adjusting horizontal and vertical direction of the headlamp. It consists of AFLS ECU, Leveling Actuator-Intelligent Stepper Motor, Swivel Actuator, Head lamp switch, Height sensor. For efficient operation of system, AFLS ECU check Battery voltage. Battery function is supply power to AFLS ECU and Actuators.
AFLS ECU set this code If lower voltage input than available voltage to circuit, and discontinued operation in order to prevent from system malfunctioning.
Item
Detecting Condition
Possible Cause
DTC Strategy
Voltage monitoring
Faulty in power circuit
Faulty in ground circuit
Faulty in battery
Faulty charging system
Enable Conditions
IG ON
Threshold Value
Voltage < 9 [V]
Detecting time
10sec.
Fail Safe
Leveling -1.5% down
Swivelling : move to 0° position.
Check Lamp
NO
