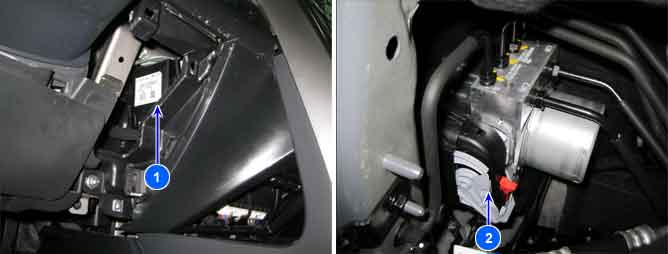

1. AFLS ECU
2. ESP
Several control units are applied to electronically controlled vehicles. These units perform each control with informations from various sensors. Thus, sharing signal information from sensors is needed, so CAN communication type whose communication speed is high and insensitive to electrical noise by spark generation is adopted to controlling power-train(engine, atutomatic transaxle, ABS(ESP))AFLS ECU is input some informations(engine speed, steering angle sensor's signal, vehicle speed) in order to maintain optimum headlamp condition through CAN communication. AFLS ECU take cognizance of slope uses yaw rate sensor's signal.
AFLS ECU set this code If input value(yaw rate sensor's signal) is message signal timeout or invalid value.
Item
Detecting Condition
Possible Cause
DTC Strategy
Signal monitoring
CAN communication circuit Open/Short
Yaw rate circuit Open/Short
Faulty Yaw rate
Faulty ESP ECU
Enable Conditions
IG ON
Threshold Value
Yaw rate sensor output is invalid value.
CAN communication signal not output from ESP ECU
Detecting time
0.5 sec.
Fail Safe
Leveling : Normal operation
Swivelling : Reduced performance
Check Lamp
NO
