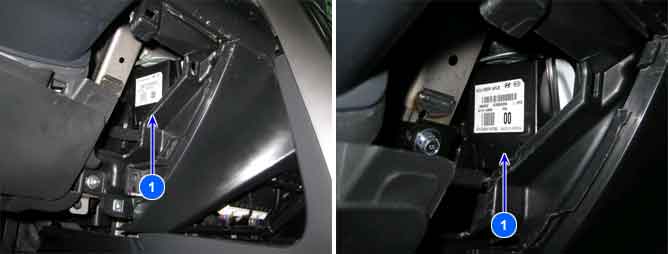

1. AFLS ECU
Several control units are applied to electronically controlled vehicles. These units perform each control with informations from various sensors. Thus, sharing signal information from sensors is needed, so CAN communication type whose communication speed is high and insensitive to electrical noise by spark generation is adopted to controlling power-train(engine, atutomatic transaxle, ABS(ESP))AFLS ECU is input some informations(engine speed, steering angle sensor's signal, vehicle speed) in order to maintain optimum headlamp condition through CAN communication.
When the AFLS ECU cannot read any data from CAN-BUS line, the AFLS ECU sets this code. CAN-BUS circuit malfunctioning or short to battery or ground line can be a posssible cause of this DTC.
Item
Detecting Condition
Possible Cause
DTC Strategy
Signal monitoring
CAN communication circuit Open/Short
Faulty in CAN communication dircuit.
Faulty in CAN communication module.
Enable Conditions
IG ON
Threshold Value
Faulty in CAN communication circuit.
Detecting time
0.5 sec.
Fail Safe
Leveling : stop at present status.
Swivelling : stop at present status.
Check Lamp
NO
