P0106 Manifold Absolute Pressure/Barometric Pressure Circuit Range/Performance

AutoHex Online Help: Hyundai i30(GDe) 2013

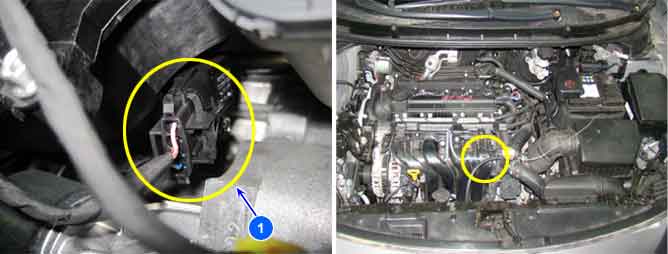

Component Location

1. MAP

General Description

The amount of intake air flow must be inputted to ECM in order to determine the fuel injection quantity. MAPS(Manifold Absolute Pressure) calculates the amount of air indirectly as measuring the pressure inside of intake manifold. This mechanism is called Speed-Density Type.

MAPS transfers analog output signal which is proportional to the change of intake manifold pressure, then, with this signal and RPM, ECM calculates the amount of intake air flow.

MAPS is mounted on surge tank to measure the pressure inside of intake manifold, and it consists of a piezo electric element and hybrid IC which amplifies output signal from the element. A piezo electric element is a sort of a diaphragm using piezo electric effect. One side of the diaphragm is surrounded with vacuum chamber while intake pressure is applied to the other side. Thus, signals are output by the transformation of diagphragm according to the change of pressure inside of intake manifold.



DTC Description

If intake manifold pressure is lower than the minimum threshold value or higher than the maximum threshold value according to RPM and TPS under normal TPS signal input condition, ECM sets DTC P0106.

DTC Detecting Condition

Item

Detecting Condition

Possible Cause

DTC Strategy

Rationality check

Poor connection

MAPS

Enable Conditions

Time elapsed after start > 1 sec.

No TPS error detected

No CVVT error detected

No signal error detected

Threshold Value

Case1

Intake manifold pressure > max. Threshold f(Eng. Speed,TPS)

Case2

Intake manifold pressure < min. Threshold f(Eng. Speed, TPS)

Case3

Measured intake manifold pressure stuck

Diagnostic Time

5 sec.

MIL ON Condition

3 driving cycle

Specification

Pressure [kPa]

20

46.7

101.32

Voltage [V]

0.79

1.84

4.0

Diagnostic Circuit Diagram
Signal Waveform & Data

As often as possible, the MAPS signal should be compared with the TPS signal. Check whether the MAPS and TPS signals increase at the same time when accelerating. During acceleration, the MAPS output voltage increases; during deceleration, the MAPS output voltage decreases.
