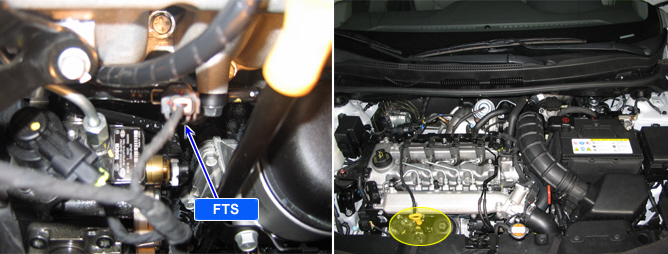

Fuel Temperature Sensor is NTC thermistor installed in fuel supplying line. It senses the temperature of fuel supplied to high pressure pump.
Fuel temperature is limited (engine power is limited) to keep fuel temperature from reaching at 120°C.
This limit is to protect fuel line such as high pressure pump and injectors from damages due to rapid deterioration by vapor-lock phenomenon which can occur at high temperature or destruction of oil membrane.
P0183 is set when the voltage below 172mV(0.172V) - minimum voltage of FTS output - is detected for more than 2.0 sec.. This code is due to short to ground in FTS signal circuit.
Item
Detecting Condition
Possible Cause
DTC Strategy
Voltage monitoring
FTS circuit
FTS component
Enable Conditions
IG KEY "ON"
Threshold Value
When output signal is below the minimum value.(below 172mV)
Diagnostic Time
2.0 sec.
Fail Safe
Fuel cut
NO
FTS fixed at 80?.
EGR Off
Fuel Limit
MIL
Temperature
- 30?
- 20?
-10?
0?
20?
Resistance
22.22~31.78?
13.24~18.10?
8.16~10.74?
5.18~6.60?
2.27~2.73?
40?
50?
60?
70?
1.059~1.281?
0.748~0.904?
0.538~0.650?
0.392~0.476?
