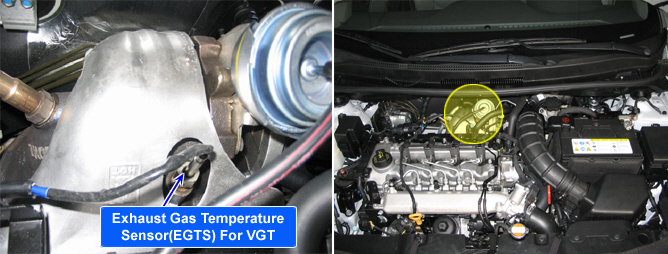

Component Location
General Description
In EURO4 diesel engine with CPF, injection is devided into 2 pilot, 1 main, 2 post injections. Among these injections, pilot and main injections are for the operation of engine, however post injections are for CPF regeneration. Only in activating condition of CPF regeneration during driving, post injection starts. 1st post injection happens at the end of combustion cycle then, injected fuel is used to raise exhaust temperature. that temp. is sensed at T3 exhaust tempt. sensor which is ahead of Turbo charger. 2nd post injection happens at exhaust cycle then, injected fuel is also used to raise exhaust temperature. that temp. is sensed T5 exhaust tempt. sensor which is between Oxydation catalyst and CPF. The reason of raising exhaust tempt. is because exhaust tempt. in diesel engine is too low for CPF regeneration. The optimum tempt. for CPF regeneration is 550~600? thus, the goal of post injection is raise exhaust tempt. to that range of tempt.. However if exhaust tempt. is too high, turbo charger or CPF are likely to be damaged. Therefore if tempt. measured at each sensor is out of permittable value(specification), ECM deactivates CPF regeneration.
DTC Description
P0546 is set when the Exhaust gas temperature sensor(EGTS) - VST signal is detected over maximum set temperature(890?),- In case that exhaust gas temperature on the front side of VGT is abnormally increased -, for more than 1sec. Therefore, check component or vehicle is driven in severe driving condition.
*. In case that real exhaust gas temperature reaches up to 900?, engine and exhaust line(Turbo charger), CPF can be damaged.
DTC Detecting Condition
Item | Detecting Condition | Possible Cause |
DTC Strategy | Voltage monitoring
| Abnormal over-load (driving) condition
Exhaust gas temp. sensor(T3-VGT) wiring
Exhaust gas temp. sensor(T3-VGT) component
|
Enable Conditions | IG KEY "ON"
|
Threshold Value | Exhaust gas temp. exceeds 900?(EGTS-VGT)
|
Diagnostic Time | 1.0 sec.
|
Fail Safe | Fuel Cut | NO | |
EGR Off | NO |
Fuel Limit | NO |
Check Lamp | OFF |
Specification
Resistance/Temperature CharacteristicsTemp. (?) | Nominal (k?) | NEW | AGED |
Min(k?) | Max(k?) | Min(k?) | Max(k?) |
100 | 371 | 289 | 481 | 272 | 515 |
300 | 5.92 | 5.3 | 6.61 | 5.15 | 6.79 |
600 | 0.363 | 0.347 | 0.379 | 0.341 | 0.386 |
900 | 0.0893 | 0.0842 | 0.0949 | 0.0833 | 0.096 |
Diagnostic Circuit Diagram
Signal Waveform
Fig.1) 4.8V is outputted at EGTS output signal circuit, when exhaust gas temp. is approx.150?.
When exhaust gas temp. is 550~600? at CPF regeneration, output voltage drops to 0.3~0.4V.
