1. Oxygen Sensor (S1)

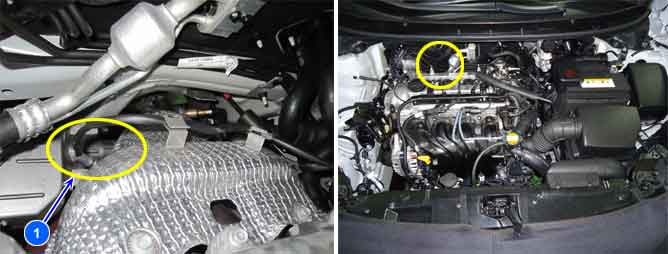

Lambda sensor installed at exhaust manifold is planar ZrO2 dual cell type and it senses O2 density of exhaust gas for accurate EGR control through fuel correction. It also limits smoke which is generated by reach air-fuel mixture at engine maximum loading condition. ECM controls pumping current in order to fit ?-value from linear O2 sensor to 1.0.
Lean air-fuel mixture(1.0<1.1) : ECM supplies pumping current to Lambda sensor (+pumping current) and activates it for Lambda sensor to have the characteristic at ?=1.0 (0.0 pumping current). With the value of pumping current supplied to Lambda sensor, ECM detects O2 density of exhaust gas.
Rich air-fuel mixture(0.9<1.0) : ECM takes away pumping current from O2 sensor (-pumping current) and deactivates it for Lambda sensor to have the characteristic at ?=1.0 (0.0 pumping current). With the value of pumping current taken away from Lambda sensor, ECM detects O2 density of exhaust gas.
This performance is the most active and fast at normal operating temp.(450?~600?) thus, in order to reach normal operating temp. and last at that temp., heater(heating coil) is integrated with Lambda sensor.
Heater coil is controlled by ECM as PWM. the resistance of heater coil is low when coil is cold thus, current through it increases while resistance is high when coil is hot thus, current decreases. With this principle, Lambda sensor temp. is measured and Lambda sensor heater operation varies based on the data.
ECM shows P2237 when the conditions are like below.
- Deviation of average correction value of fuel ratio is higher than 0.1 when sensor voltage is 1.49~1.5V
- Accumulated air mass flow value is higher than threshold value when target lambda is 0.97
- Upstream O2 sensor displays 1.7V below when the fuel cut is being kept over 3 minutes.
Item
Detecting Condition
Possible Cause
DTC Strategy
Rationality check
Poor connection
Open or short power/ground in signal circuit
S1
Case1
Enable
Conditions
S1 sensor voltage : 1.49 ~ 1.5V
ThresholdValue
Deviation of average correction value of fuel ratio >0.1
DiagnosticTime
3 sec
Case2
Fuel cut condition > 3sec
S1 sensor voltage < 1.7V
5 sec
Case3
Target value of fuel ratio = 0.97
Integrated air mass > 0.2?
MIL ON Condition
2 driving cycle
Waveform of sensor Current Pump at IG KEY "ON" and Engine running. It fluctuates between 2V and 3V periodically.
Waveform of sensor Vertual Ground Output at IG KEY "ON" and Engine running. 2.5V is displayed.
Waveform of sensor Current Adjust at IG KEY "ON" and Engine running. It fluctuates between 2V and 3V periodically. Waveform of sensor Nernst Voltage at IG KEY "ON" and Engine running. 2.9V is displayed.
