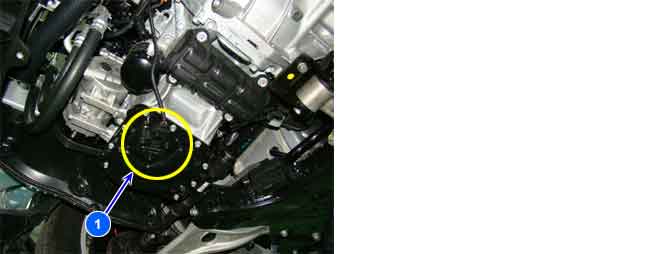

1. Oil Level sensor
Oil level sensor is installed inside Engine oil pan.Oil level sensor measures amount of Engine oil uses ultra-sonic and also measures Engine oil's temperature.These informations were transmitted to ECM through the LIN communication.
ECM sets this code when Average value of Oil level is lower than available range.
Item
Detecting Condition
Possible Cause
DTC Strategy
Signal Monitoring
Poor connection
Faulty Oil Level Sensor
Faulty Circuit
Enable Conditions
IG on
Threshold Value
Error Memory in Oil Level Sensor
Diagnostic Time
1 sec.
MIL ON Condition
DTC only (oil lamp ON)
