All 9 units which consists of the Body Electrical Control System are linked by CAN*¹ line.

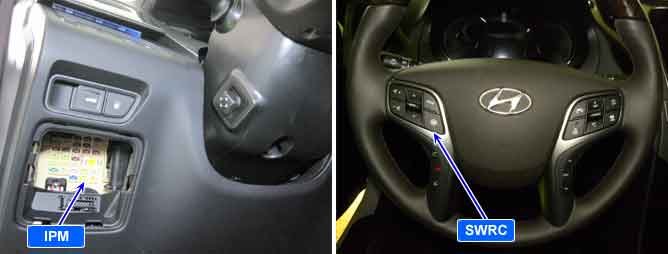

They are IPM(Intelligent integrated Platform Module), DDM(Drive Door Module), ADM(Assist Door Module), CLU(Cluster), PSM(Power Seat Module), SCM(Steering Control Module), MFSW(Multi-Function Switch), SWRC(Steering Wheel Remote Controller), SMK(Smart Key Module).
*¹ CAN (Controller Area Network) : CAN is serial bus communication type which links not only communication system but also control units each other.
*² LIN (Local Interconnect Network) : LIN is serial communication type which is used in electrical control system. (This is less expensive.)
IPM: Intelligent integrated Platform Module SMK: Smart Key DDM: Driver Door Module ADM: Assistant Door Module PSM: Power Seat Module MFSW: Multi-Function Switch SWRC: Steering Wheel Remote Controller IMS SW:Integrated Memory System Switch SCM: Steering Column Module PCU: Power-train Control Unit ECU: Engine Control Unit EPB: Electronic Parking Brake ABS: Anti-lock Brake System ESC: Electronic Stability Control SCC: Smart Cruise Control CLUM: Cluster Module DATC: Dual Automatic Temp. Control SCC: Smart Cruise Control MDPS: Motor Driven Power Steering SAS: Steering Angle Sensor TPMS: Tire Pressure Monitoring System SRSCM: Supplemental Restraints System Control Module HU: Head Unit RRC: Rear Remote Control AMP: Amplifier
This code is outputted when IPM can't receive data from SWRC by CAN Line for 10 sec.
Item
Detecting Condition
Possible Cause
DTC Strategy
CAN Comm. Check (IPM ? SWRC)
IG ON
No receiving CAN Data owing to BUS OFF (Check CAN BUS ERROR DTC is being)
IPM CAN High/Low Lines open together
Check SWRC (Including the related fuses)
SWRC CAN High/Low Lines open
Enable Conditions
IPM power on
Threshold Value
No message from SWRC to IPM for 10 sec.
Diagnostic Time
10 sec.
DTC Erasing Time
DTC is erased immediately after receiving data from SWRC
Fig.1) CAN Low/High Signal Waveform
Fig.2) CAN BUS Voltage Level (Low Speed CAN)
