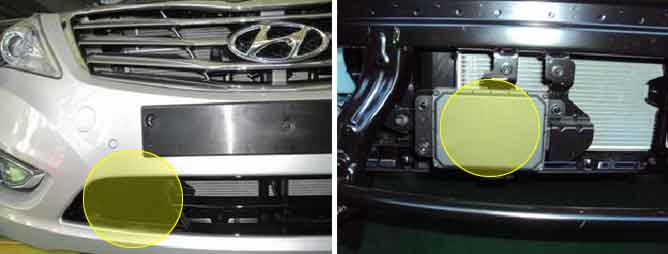

SCC(Smart Cruise Control) checks the battery voltage and generator output voltage to determine whether the SCC system can operate normally or not.
The normal battery voltage range is essential for controlling the SCC system as intended.
SCC sets this code if terminal input voltage declines 9V when engine run. if terminal input voltage climbs by normal voltage range ,SCC recovers to normal state .
Item
Detecting Condition
Possible cause
DTC Strategy
Terminal input voltage monitoring
Open/short in power circuit.
Faulty ground circuit
Faulty charging system.
Enable Conditions
Engine Run (engine rpm higher than 400 at least for 2s)
Threshold value
Terminal input voltage < 9V
Diagnosis Time
Continuous (minimum fault detect time : 500ms)
Recover Condition
Terminal input voltage > 9V
Fail Safe
SCC Disengagement/Shutdown
Red SCC warning lamp turns on
Bat. Voltage
IG Key ON
ENG. ON
Approx. 11.8 [V]~12.5 [V]
Approx. 12.5 [V] ~ 14.5 [V]
