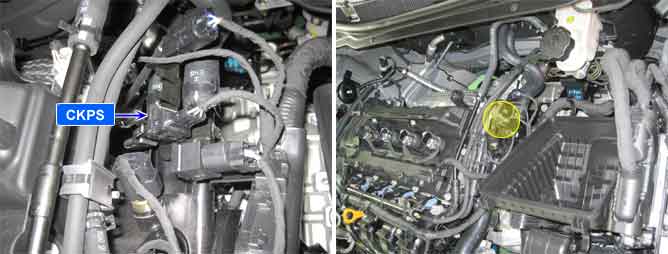

The Crankshaft Position Sensor (CKPS) is a hall effect type sensor that generates voltage using a sensor and a target wheel mounted on the crankshaft; there are 58 slots in the target wheel where one is longer than the others. When the slot in the wheel aligns with the sensor, the sensor voltage outputs low. When the metal (tooth) in the wheel aligns with the sensor, the sensor voltage outputs high. During one crankshaft rotation there are 58 rectangular signals and one longer signal. The PCM calculates engine RPM by using the sensor’ s signal and controls the injection duration and the ignition timing. Using the signal differences caused by the longer slot, the PCM identifies which cylinder is at top dead center.
The PCM sets DTC P0315 when the number of crankshaft teeth during one revolution is incorrect or crankshaft signal is missing while camshaft signal is detected.
Item
Detecting Condition
Possible Cause
DTC Strategy
Monitor segment time adaptation
Misadjust crankshaft and camshaft pulley position
Poor connection or damaged harness
Enable Conditions
Engine speed(rpm) : 1500~3500(A/T), 2500~3500(M/T)
No crankshaft position sensor error
Threshold Value
Segment adaptation value exceeds threshold value
Diagnostic Time
3 rev.
Mil On Condition
-
? There are 60 signals of CKPS(Including missing tooth) during the semi-cycle of CMPS #1.
? There are 3~5 signals of CKPS between the switching point of CMPS #1 and the missing tooth of CKPS.
