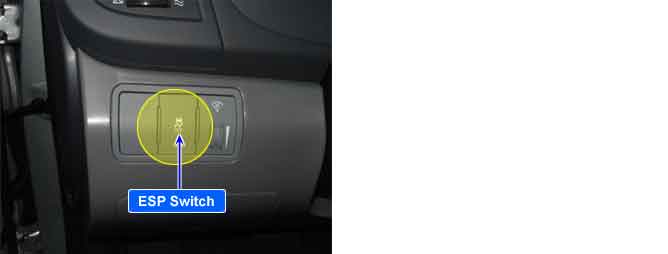

Driver can inhibit the ESP control by ESP switch.
When switch signal sends into the HECU, the ESP warning lamp goes "ON" and the ESP control is stopped and if the next switch signal is inputted again, the ESP control is ready. This function is used for sporty driving or vehicle inspection.
This DTC is set when the condition that the level of ESP switch is high is continued for more than 60 seconds.
Item
Detecting Condition
Possible cause
DTC Strategy
Circuit Monitoring
Open or short ESP switch
Faulty ESP switch
Enable Conditions
When the ESP switch is ON for 1 minute.
Fail Safe
Allow the ABS/EBD/ESP control.
The ESP warning lamp is not activated.
Engine ON
ESP switch HIGH
ESP switch LOW
7.0V ~ 16.0V
0V ~ 3.0V
